Showing #8884 of All Parts
LOADING IMAGES
|
PART: #BRD9023
|
**Discount shipping applies to this item.
|
|
|||||||||||||||||||||||
CUSTOMER REVIEWS
This product currently has 17 reviews
Overall Rating:
|
 |
Customer Performance Survey:
Customers surveying this product said...
100%"Improves performance"
Currently all feedbacks are left by AsiaTees customers.
| Quantity Discount | |||
|---|---|---|---|
| Units at this Price | ATees' Low Price (Per Unit) |
You Save | Click To Order |
PRODUCT RESOURCES
TAGGED CATEGORIES:

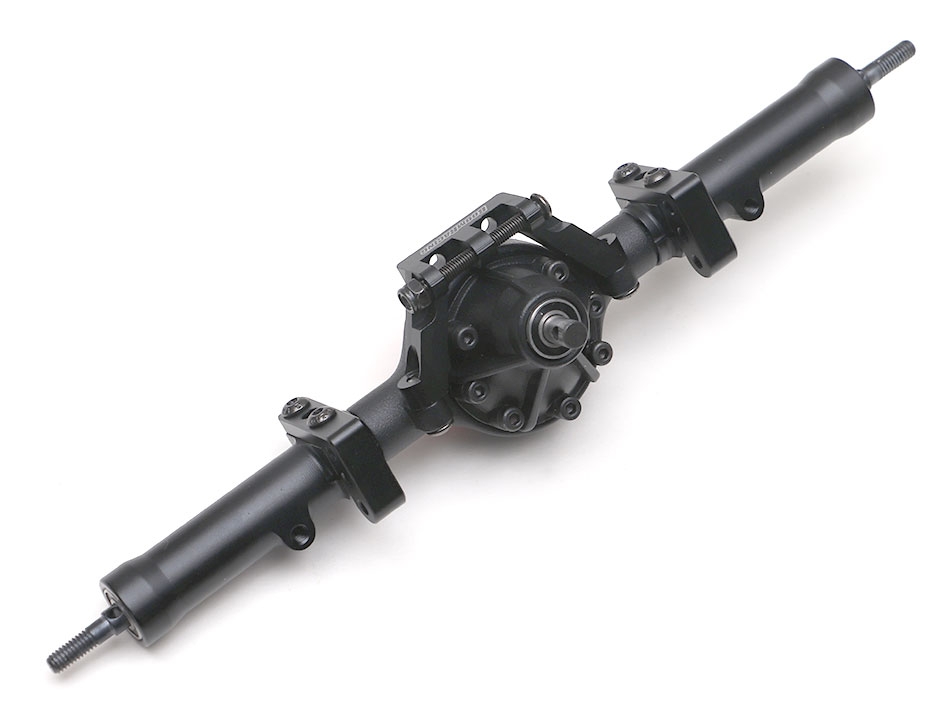

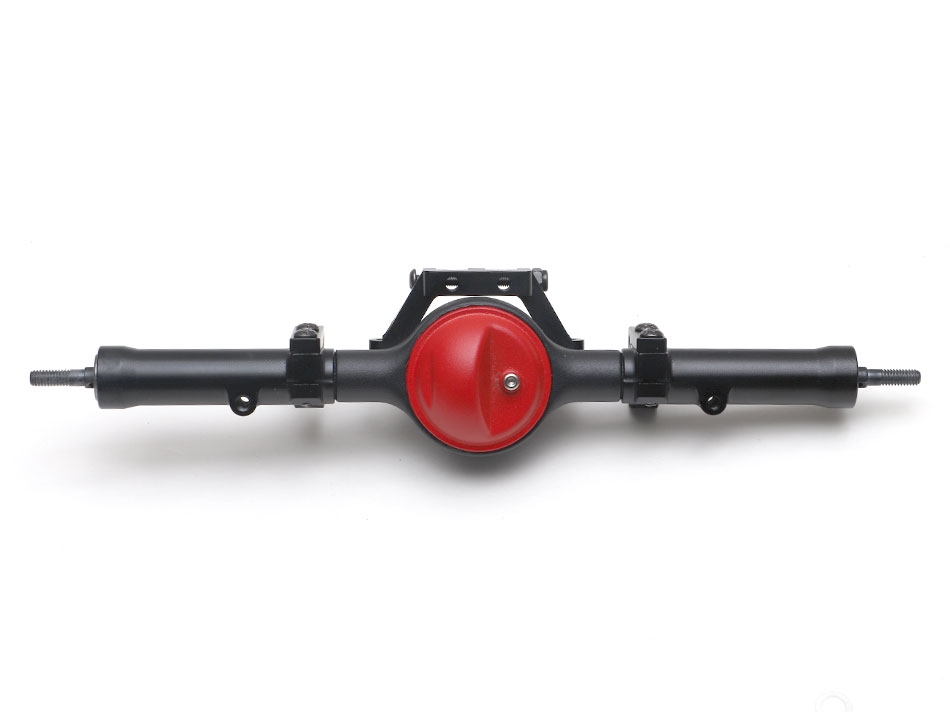

- The PHAT axle is the go-to scale truck axle combining high performance features with precision made scale realism. Based on the BRX70 PHAT Axle, the all-new BRX90 PHAT Axle is packed with lots of exciting solid axle features. It is an ultra scale, heavy-duty axle set designed for top performance in custom R/C builds.
What stands out immediately when you pick up a set of BRX90 axle is the weight. The axle weighs 220g. The heavy weight helps to keep the vehicle planted to the ground at all times.
Features:- PHAT axle 220grams total weight
- Keyed HD AR44 Helical Bevel Gear Set. Bevel gears are keyed for extra durability and strength. Standard AR44 high pinion gear & input shaft
- High pinion axle setup for better clearance
- Removable third member with reversible axle bevel gear positions for standard or counter rotation setups (swap gear to opposite side for counter rotation center drivetrain setup)
- CNC aluminum axle truss for linked setup (remove truss for leaf spring option for ultimate scale look)
- Cast splined axle housing
- CNC aluminum lockouts with splines
- Leaf spring slots are ready for over or under the axle housing setup (optional)
- BADASS HD steel rear drive shaft for ultimate durability and strength for the axle drivetrain

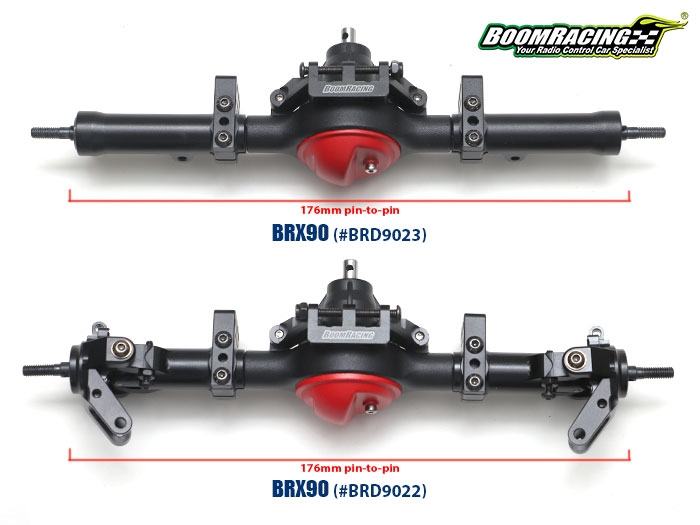

Size:- 176mm / 6.93 inch pin to pin (front and rear)

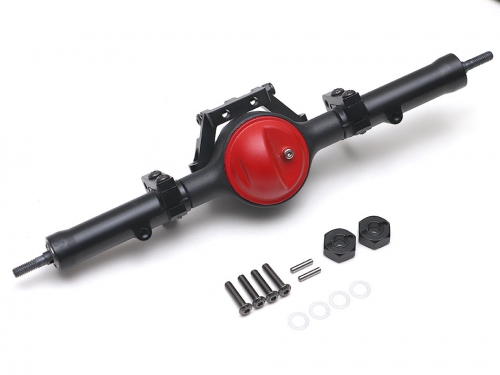

Includes:- 1x BRX90 Rear PHAT Axle Housing
- 1x AR44 Heavy Duty Keyed Helical Bevel Gear & Input Shaft (30/8T) BR955020
- 2x CNC aluminum lockouts
- 2x BRX90 BADASS Heavy Duty Rear Steel Driveshafts BRBD9002
- 1x CNC Aluminum Truss
- 2x CNC Aluminum Link Mounts with multiple shock position options
- 2x CNC Aluminum 12mm Hex and Wheel Pins
- Full set of rubber sealed bearings set for BRX90 Rear axle
- Hardware
Optional:- For Leaf Spring setup, additional optional parts may/may not be needed depending on your setup. Leafs can be mounted directly on top or under the axle. We recommend
When you receive the axle:
Make sure all of the screws are tightened properly.
The gear positions are factory setup and should be ready to go. Rotate the drivetrain by hand for physical inspection.
Install spacers accordingly between the center driveshaft and the input shaft to prevent input shaft from unnecessary slop.
Replacement:

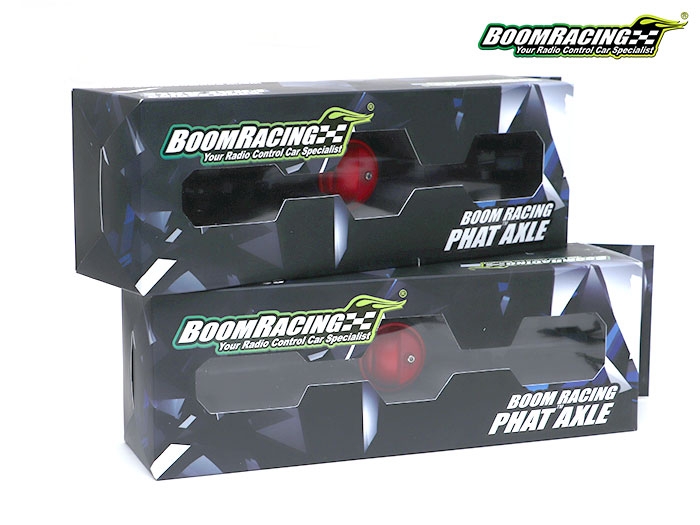

- Package total weight: 302.00 grams (incl. packaging)
- Package size: 9.00 x 24.00 x 8.00cm
- Factory description: Boom Racing Complete Rear Assembled BRX90 PHAT Axle Set w/ AR44 HD Gears
- Manufactured by Boom Racing
- Manufacturer number: BRD9023
- This item is eligible for in-store promotions
- Nobody beats our price! See our Best Price Guarantee, or your money back!
- Questions about this product? Ask Our Technical Support
- You may Request Additional Product Information for this product.
- Looking for screws / bolts to assemble this product? Email Us
- To enhance this item, check out these other fine products:
Find something wrong in this description?
Help us fix it! Report An Error
BRX90 Rear Straight PHAT™ Axle (Center Pumpkin) w/ AR44 HD Gears Assembled by Boom Racing
LOADING IMAGES
|
|
|
Warehouse Availability:
HK: In stock (ships worldwide)
US: In stock (ships within US and US territories only)
Tagged Categories
- The PHAT axle is the go-to scale truck axle combining high performance features with precision made scale realism. Based on the BRX70 PHAT Axle, the all-new BRX90 PHAT Axle is packed with lots of exciting solid axle features. It is an ultra scale, heavy-duty axle set designed for top performance in custom R/C builds.
What stands out immediately when you pick up a set of BRX90 axle is the weight. The axle weighs 220g. The heavy weight helps to keep the vehicle planted to the ground at all times.
Features:- PHAT axle 220grams total weight
- Keyed HD AR44 Helical Bevel Gear Set. Bevel gears are keyed for extra durability and strength. Standard AR44 high pinion gear & input shaft
- High pinion axle setup for better clearance
- Removable third member with reversible axle bevel gear positions for standard or counter rotation setups (swap gear to opposite side for counter rotation center drivetrain setup)
- CNC aluminum axle truss for linked setup (remove truss for leaf spring option for ultimate scale look)
- Cast splined axle housing
- CNC aluminum lockouts with splines
- Leaf spring slots are ready for over or under the axle housing setup (optional)
- BADASS HD steel rear drive shaft for ultimate durability and strength for the axle drivetrain
Size:- 176mm / 6.93 inch pin to pin (front and rear)
Includes:- 1x BRX90 Rear PHAT Axle Housing
- 1x AR44 Heavy Duty Keyed Helical Bevel Gear & Input Shaft (30/8T) BR955020
- 2x CNC aluminum lockouts
- 2x BRX90 BADASS Heavy Duty Rear Steel Driveshafts BRBD9002
- 1x CNC Aluminum Truss
- 2x CNC Aluminum Link Mounts with multiple shock position options
- 2x CNC Aluminum 12mm Hex and Wheel Pins
- Full set of rubber sealed bearings set for BRX90 Rear axle
- Hardware
Optional:- For Leaf Spring setup, additional optional parts may/may not be needed depending on your setup. Leafs can be mounted directly on top or under the axle. We recommend
When you receive the axle:
Make sure all of the screws are tightened properly.
The gear positions are factory setup and should be ready to go. Rotate the drivetrain by hand for physical inspection.
Install spacers accordingly between the center driveshaft and the input shaft to prevent input shaft from unnecessary slop.
Replacement:
- Product weight: 302.00 grams
- Package size: 9.00 x 24.00 x 8.00cm
- Factory description: Boom Racing Complete Rear Assembled BRX90 PHAT Axle Set w/ AR44 HD Gears
- Manufactured by Boom Racing
- Manufacturer number: BRD9023
